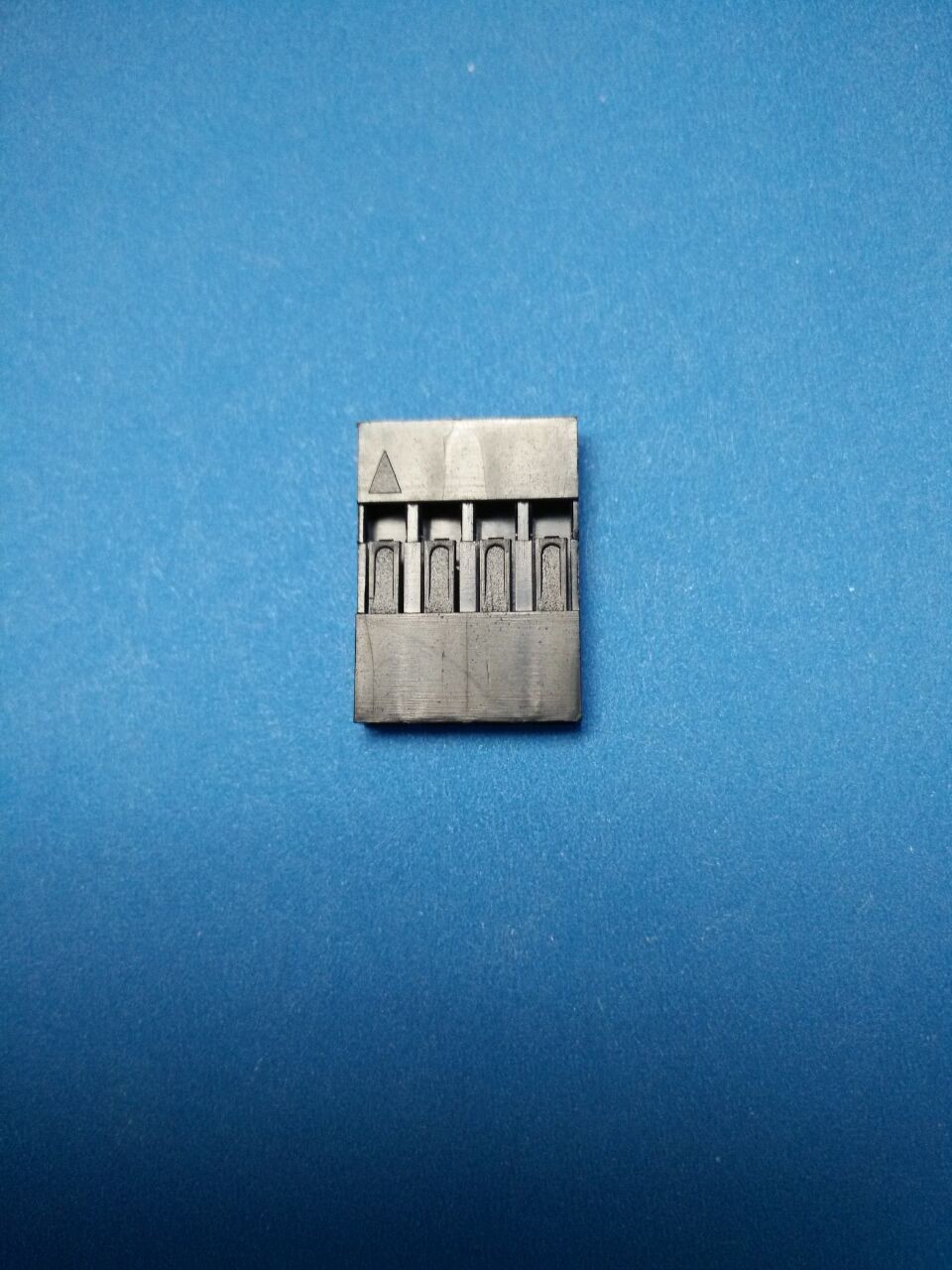

4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch

4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch

4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch

Detail produk:

Place of Origin: China
Nama merek: JVT
Sertifikasi: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1108HPT-04

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1000 PCS
Harga: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Hubungi sekarang
Detil Deskripsi produk
color: black pitch: 2.54mm
poles: 2 - 10 applicable wire: 22 - 28#AWG

2.54mm Single-row strip Dupont Wire Jumper Professional and compact, light weight.



Datasheet (PDF) & Other Documents Download center:

1.JVT1108HPT-XXBK(SH) Model (1).pdf



Specification on Material:



 Terminal: Phosphor Bronze ,Tin plated or Gold plated



 Housing: PBT UL 94V-0





 Pitch for 2.54mm Wire to Board Connector Equivalent with Dupont





Specification Standardized:





Scale / Pitch

2.54mm

Poles / Cables

2-10

Applicable wire

AWG#22-28

Rating Voltage

250V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





4 Pin Header Connector Housing For Dupont Wire Jumper Compact 2.54mm Pitch



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces




Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality





Label:

wire to board power connector,

circuit board pin connectors
